NTP Server

Synchronize your internal network with highly accurate time using an NTP server.

  • A WWVB atomic radio clock receiver receives more than 3,000 requests per minute
  • Connect your NTP time server directly to your network using a CAT5 Ethernet connection
  • Place it in a standard 19” rackmount
  • Your whole network receives highly accurate and reliable time
  • Benefit from a six-year warranty and lifetime support

NTP Server for Accurate Time

The NTS-8000-WWVB is the complete accurate time solution.

Custom NTP servers can be built with up to six Ethernet ports to serve six networks. Each network can handle up to 3,000 NTP requests per minute. This makes the NTS-8000 ideal for businesses with internal networks that supply thousands of clients.

A Windows operating system offers easy configuration and operation with any standard interface, making it ideal for those who prefer Windows over a Linux-based operating system.

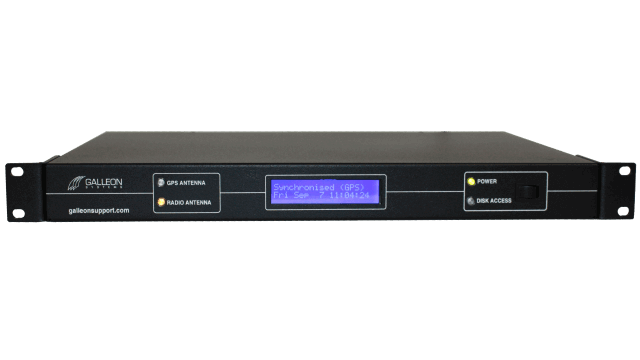

A CAT5 Ethernet connection and 19” rackmount make the NTP time server easy to install. A backlit LCD screen provides time and radio signal information to ensure simple operation and maintenance.

The GPS or radio time signal source sends time within an accuracy of 1 microsecond to the time server. This highly accurate time is then used to synchronize your network(s) to ensure all clients run at the same time.

Sitting within your firewall, the NTP time server allows you to benefit from highly accurate time without compromising on security, unlike a free, public server.

Galleon Systems is always there to offer help, with a six-year warranty and lifetime support included with every NTP time server.

Key Benefits of an NTP Server

  • Reliable: More than 3,000 NTP requests can be handled per minute, ensuring even large networks receive accurate, time all the time
  • Accurate: You receive accurate time within 1 microsecond
  • Secure: Your Stratum 1 Galleon server is private, making it much more secure than any other local NTP server
  • Easy to use: Connect the NTP time server to your network using an Ethernet cable
  • Simple installation: Fits a standard 19” rack. Configure using a standard Windows interface

Technical Specifications

  • Receiver: WWVB radio receiver
  • Timing accuracy: Network: +/- 12 milliseconds, WWVB: <1 microsecond relative to UTC
  • NTP time requests: >3,000 requests per minute
  • Supported networks: Up to six independent networks
  • Housing: Standard 19” rackmount
  • Display: LCD, 2 x 20 characters, with backlight
  • Operating system: Windows
  • Protocols: NTP v2 (RFC 1119), NTP v3 (RFC 1305), NTP v4 (RFC 2131), SNTP v3 (RFC 1769), SNTP v4 (RFC 2030)
  • Network interface: Multiple 10/100 RJ-45 network connections
  • Power supply: 85-260V, 47-63Hz
  • Operating temperature: 0-50°C/32-122°F
  • Operating humidity: Max. 85% non-condensing

What’s in the Box?

  • NTS-8000-WWVB unit
  • WWVB antenna with a 5m, 4-core cable
  • Manual
  • Power lead
  • NTP software CD
  • Junction box
  • IDC cable tool

Additional Extras

  • Gold and premium support packages
  • Digital wall clocks
  • Antenna cable, available between 100 to 1,000 meters
  • Additional power supply – recommended from 550 meters onwards
  • Lightning arrestor
  • Additional software licenses, available from 5 to over 300 clients
